ME-8108
Price per piece:
€ 42,49
Prices
Total:
€ 42,49
Product description

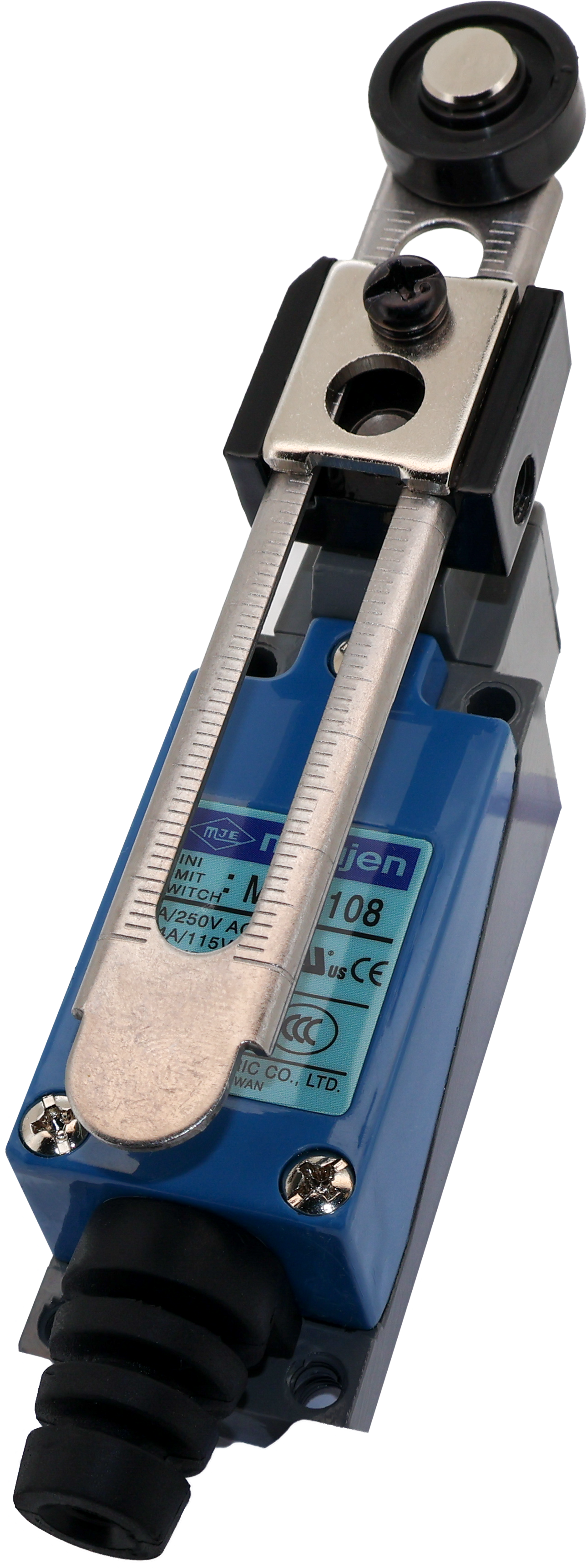

Robust Limit Switch with Sideways Rotation and Adjustable Nylon Roller
The ME-8108 is a professional limit switch from the ME Series, equipped with sideways rotation and an adjustable nylon roller for reliable, smooth and flexible position detection in various industrial applications.
Key Features:
- Sideways Rotation - Unique sideways rotation mechanism for flexible detection
- Adjustable Nylon Roller - Adjustable nylon roller for optimal detection distance and smooth operation
- Smooth Operation - Nylon roller ensures smooth detection
- Robust Construction - Withstands industrial environments
- ME-Series Quality - Part of the proven ME series for consistent performance
Applications:
Ideal for applications requiring a robust limit switch with sideways rotation and an adjustable nylon roller, such as production equipment, conveyor belts, packaging lines, and other industrial systems where smooth, adjustable detection is essential.
Technical Specifications:
- Type: Sideways rotation limit switch
- Actuator: Adjustable nylon roller
- Rotation: Sideways
- Series: ME Series
Smooth and flexible detection with sideways rotation and an adjustable nylon roller.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
5A 250V
Actuation Sequence(s)
Double Break(1)
Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 115V
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting - 1.18~1.37 N⋅m
Enclosure cover - 0.44±0.05 N⋅m
Screw Terminal - 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 300,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
