ME-8166
Price per piece:
€ 36,10
Prices
Total:
€ 36,10
Product description

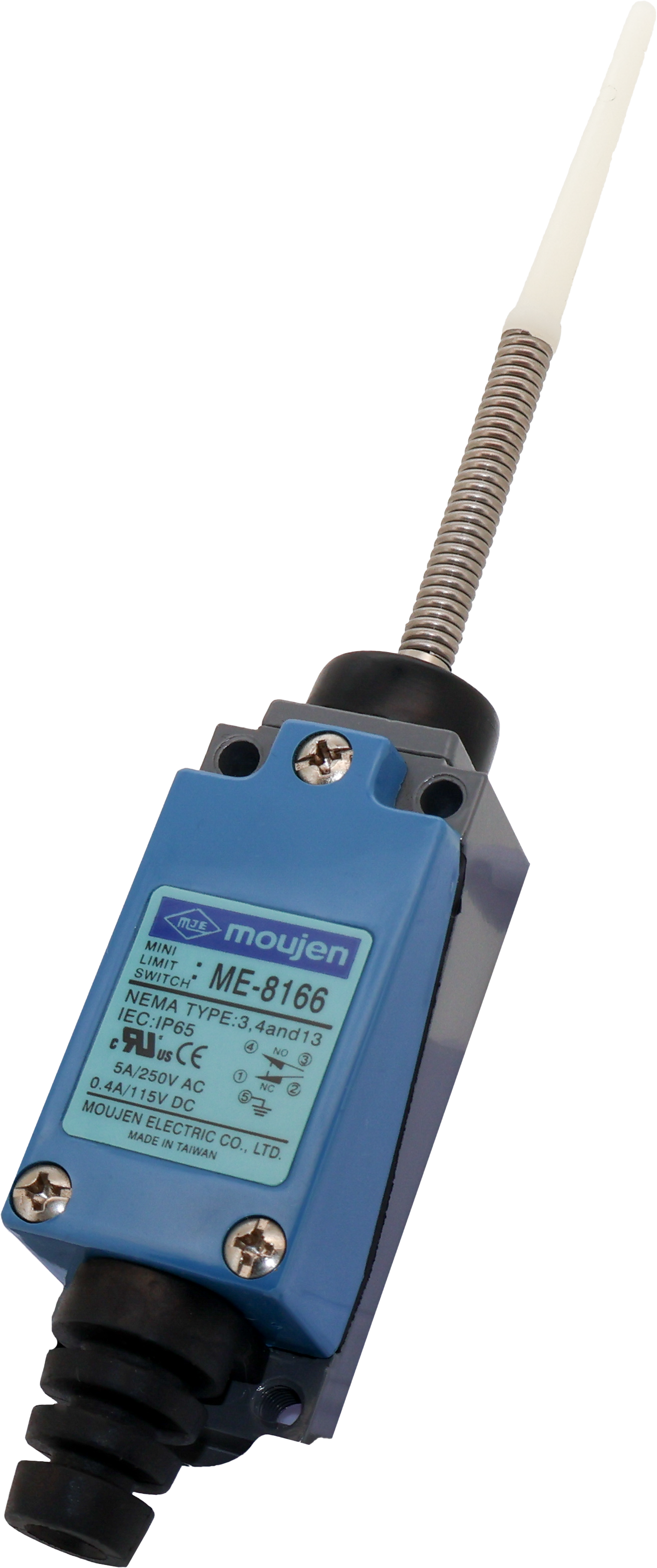

Robust Limit Switch with Metal Spring Coil and Nylon Tip
The ME-8166 is a professional limit switch from the ME Series, equipped with a metal-spring coil and a nylon tip for reliable, flexible position detection in various industrial applications.
Key Features:
- Metal Spring Coil with Nylon Tip - Robust metal spring coil with durable nylon tip for flexible detection
- Flexible Operation - Spring coil allows for adjustable detection
- Robust Construction - Withstands industrial environments
- Reliable Operation - Consistent performance in demanding applications
- ME-Series Quality - Part of the proven ME series for consistent performance
Applications:
Ideal for applications requiring a robust limit switch with a metal spring coil and nylon tip, such as production equipment, conveyor belts, packaging lines and other industrial systems where flexible and reliable detection is essential.
Technical Specifications:
- Type: Limit switch with spring coil
- Actuator: Metal spring coil with nylon tip
- Series: ME Series
Flexible and reliable detection with a metal spring coil and a nylon tip.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
5A 250V
Actuation Sequence(s)
Double Break(1)
Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 115V
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting - 1.18~1.37 N⋅m
Enclosure cover - 0.44±0.05 N⋅m
Screw Terminal - 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 300,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
