MEA-9169
Price per piece:
€ 26,82
Prices
Total:
€ 26,82
Product description

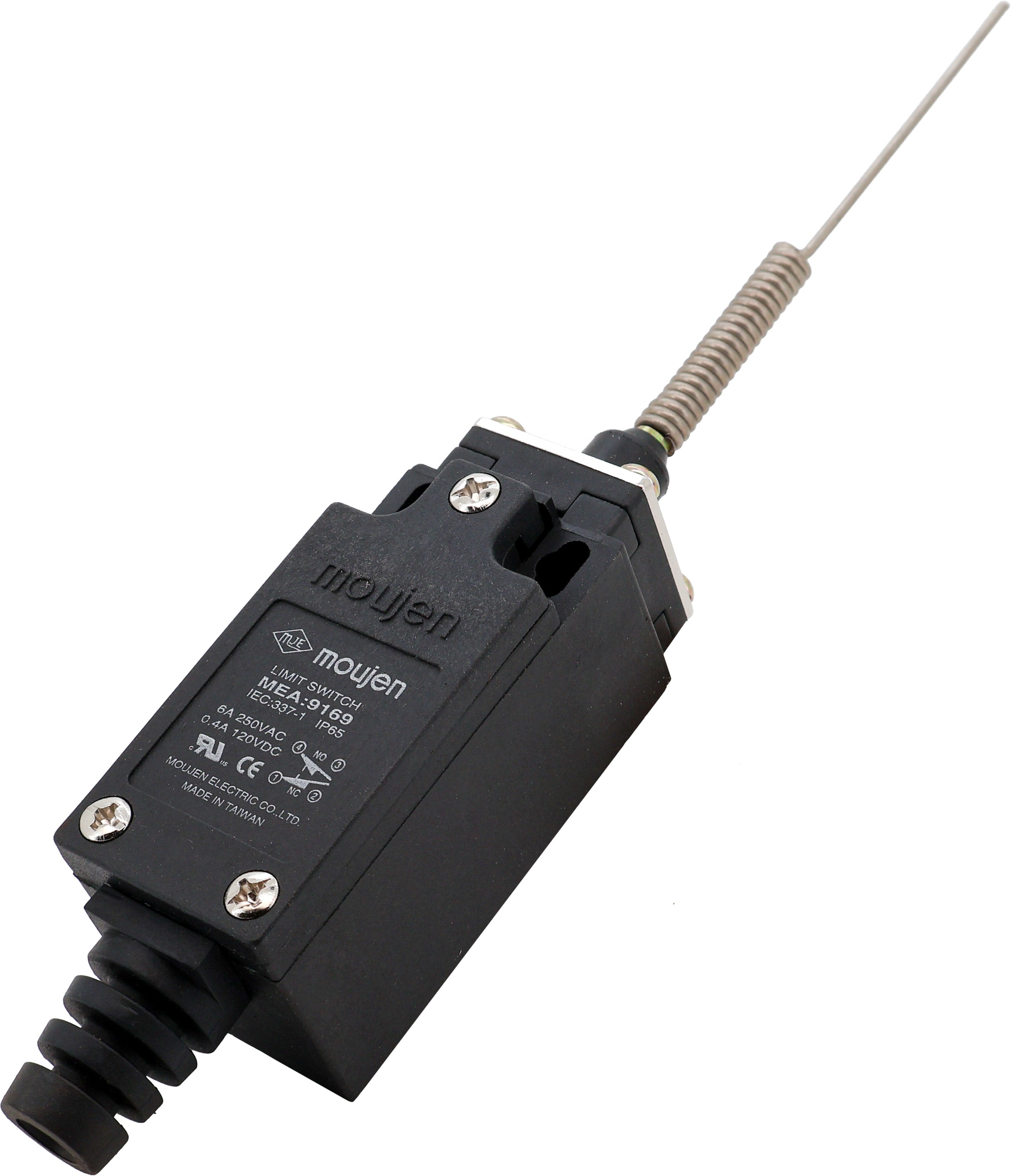

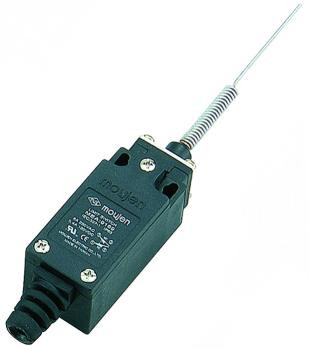

Robust Limit Switch with Spring Coil Actuator
The MEA-9169 is a professional limit switch from the MEA Series, equipped with a metal spring coil with reed for flexible and reliable position detection in demanding industrial environments.
Key Features:
- Metal Spring Coil - Durable metal spring construction for flexible activation from multiple directions
- Stem Actuator - Long stem for large detection range and easy activation
- Robust Construction - Metal design for long-term reliability in harsh conditions
- Flexible Activation - Spring coil can be activated from different angles
- MEA Series Quality - Part of the proven MEA series for consistent performance
Applications:
Ideal for applications where flexible activation from multiple directions is required, such as conveyor belts, sorting systems, automated production equipment and other industrial systems where objects can approach the switch from different angles.
Technical Specifications:
- Type: Limit switch with spring coil
- Actuator: Metal spring coil with spring
- Activation type: Multi-directional
- Series: MEA-9100
Flexible position detection for versatile industrial applications.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
6A 125-250V
Actuation Sequence(s)
Double Break(1)
Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m
Enclosure cover 0.44±0.05 N⋅m
Screw Terminal 0.29±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
