MN-5120
Price per piece:
€ 16,55
Prices
Total:
€ 16,55
Product description

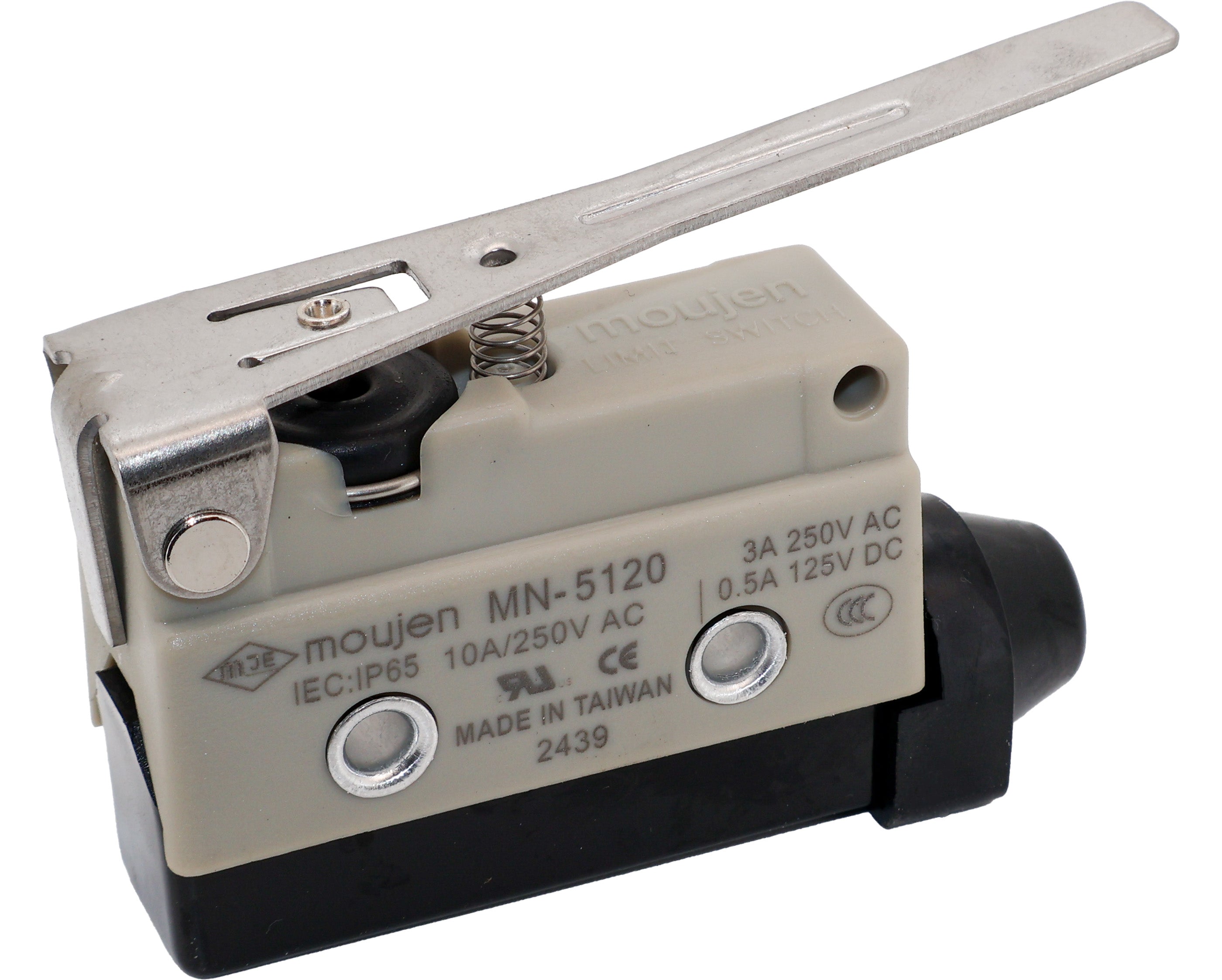

Robust Limit Switch with Long Straight Lever
The MN-5120 is a professional limit switch from the MN Series, equipped with a long, straight metal lever for durable, reliable position detection and increased range in various industrial applications.
Key Features:
- Long Straight Metal Lever - Extra-long straight lever for extended range
- Durable Construction - Metal design for long service life
- Extended Detection Range - Long lever for greater detection distance
- Straight Design - Straight lever for specific applications
- MN-Series Quality - Part of the proven MN series for consistent performance
Applications:
Ideal for applications requiring a robust limit switch with a long straight lever, such as conveyor belts, automated production equipment, packaging lines, and other industrial systems where reliability and extended detection range are essential.
Technical Specifications:
- Type: Limit switch with long straight lever
- Actuator: Long, straight metal lever
- Series: MN-5100
Durable position detection with a long, straight metal lever.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
10A 250V
Actuation Sequence(s)
Break(1) Make (2)
Contact Form(s)
Form C
Contact Resistance
25mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
true
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.01mm to 50cm/sec
Operating Temp
-10 to 80 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 60/min
Poles & Throws
SPDT Snap
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m
Panel Mount Screw Nut 2.94~4.92 N⋅m
Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
