MN-5141
Price per piece:
€ 16,69
Prices
Total:
€ 16,69
Product description

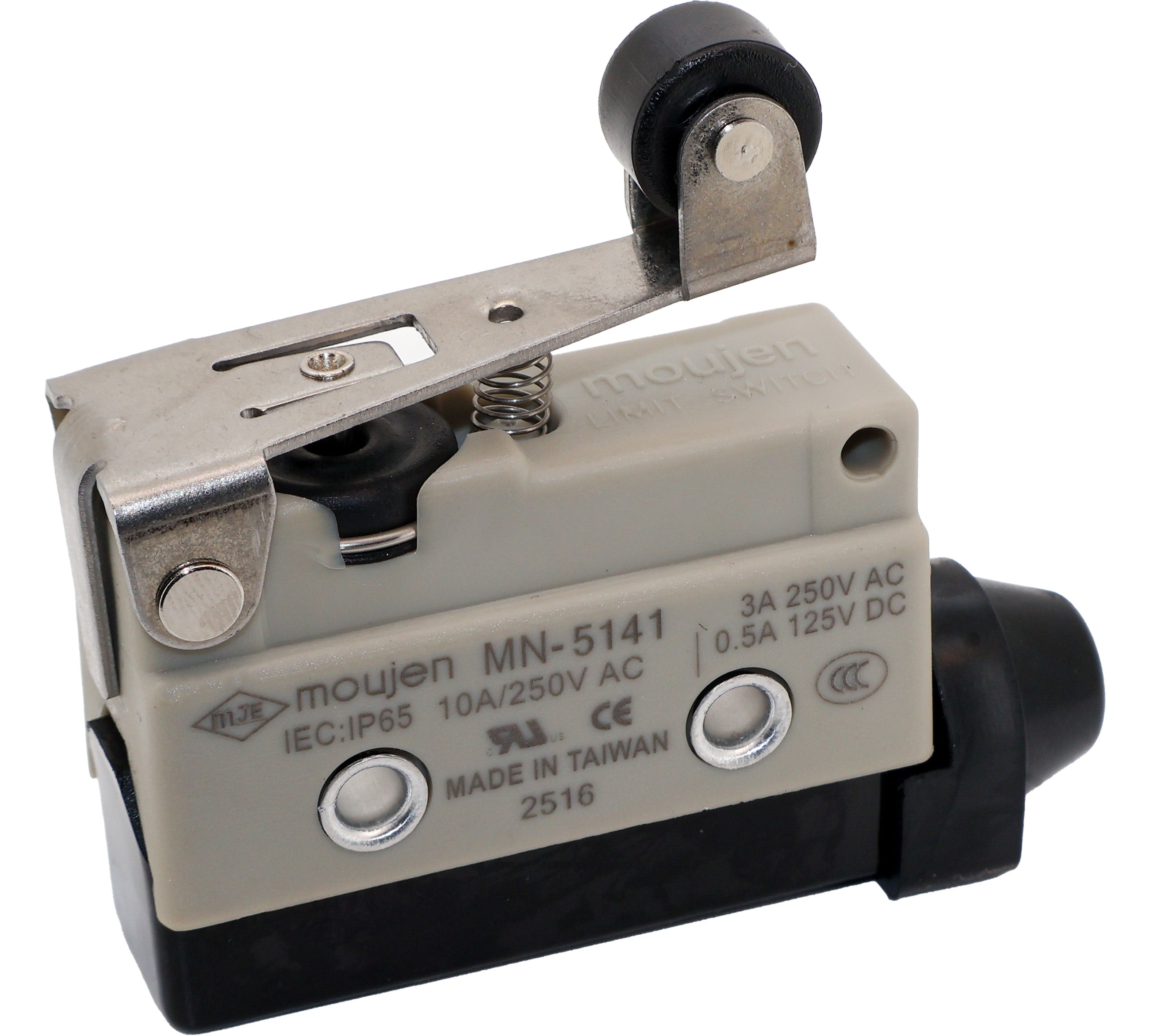

Robust Limit Switch with Lever and Nylon Roller
The MN-5141 is a professional limit switch from the MN Series, equipped with a metal lever and a nylon roller for durable, reliable position detection in various industrial applications.
Key Features:
- Metal Lever with Nylon Roller - Robust lever with wear-resistant nylon roller
- Durable Construction - A combination of metal and nylon for optimal performance
- Smooth Operation - Nylon roller ensures smooth detection
- Reliable Detection - Consistent performance in industrial environments
- MN Series Quality - Part of the proven MN series for consistent performance
Applications:
Ideal for applications requiring a robust limit switch with a lever and nylon roller, such as conveyor belts, automated production equipment, packaging lines, and other industrial systems where reliability and durability are essential.
Technical Specifications:
- Type: Limit switch with lever and roller
- Actuator: Metal lever with nylon roller
- Series: MN-5100
Durable position detection with lever and nylon roller.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
10A 250V
Actuation Sequence(s)
Break(1) Make (2)
Contact Form(s)
Form C
Contact Resistance
25mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
true
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.01mm to 50cm/sec
Operating Temp
-10 to 80 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 60/min
Poles & Throws
SPDT Snap
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m
Panel Mount Screw Nut 2.94~4.92 N⋅m
Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
