MN-5312
Price per piece:
€ 21,65
Prices
Total:
€ 21,65
Product description

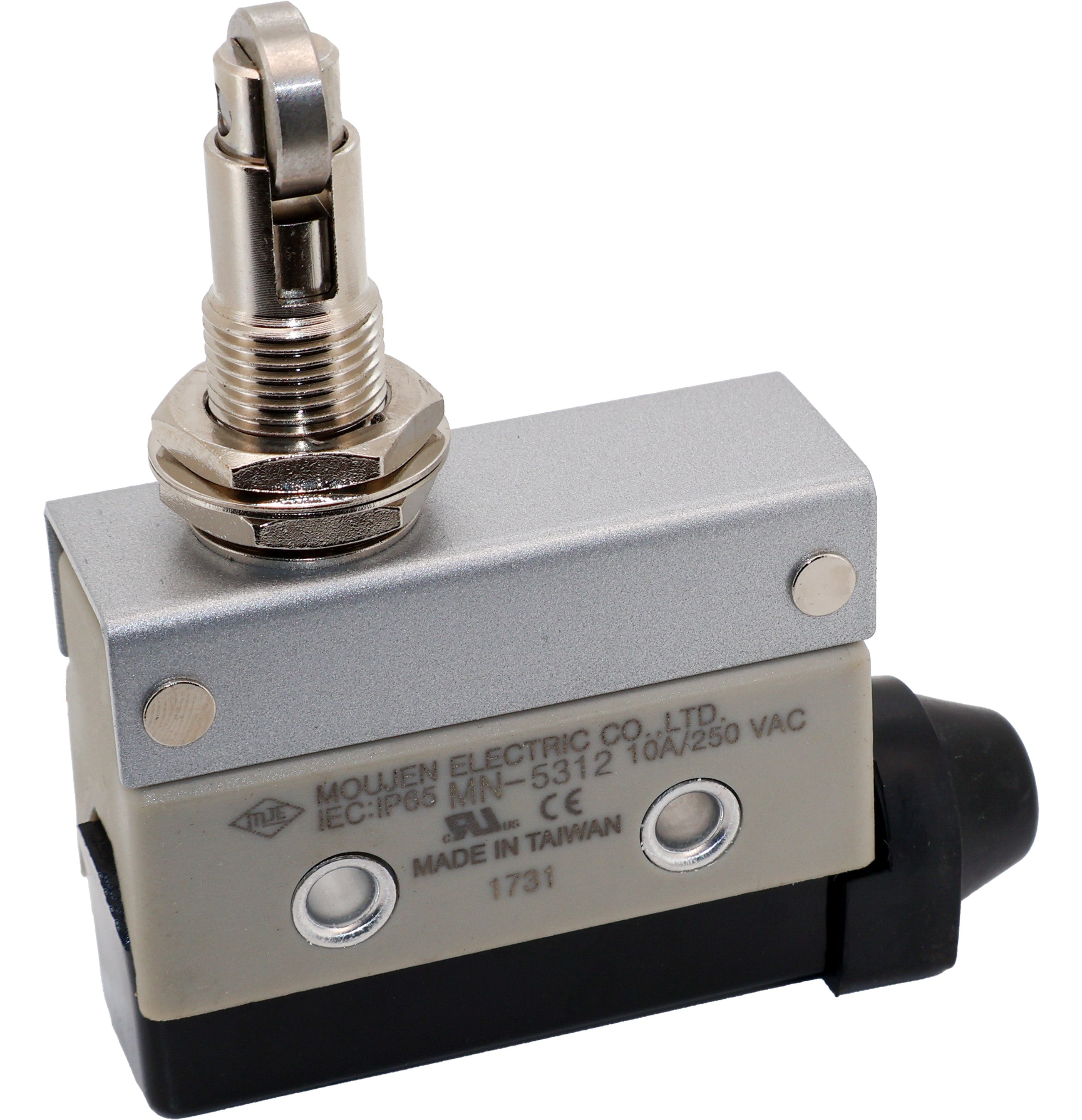

Versatile Limit Switch with Push Button, Roller, and Panel
The MN-5312 is a professional limit switch from the MN Series, equipped with a twisted-metal push-button with a roller, to which a panel can be mounted for versatile, reliable position detection in various industrial applications.
Key Features:
- Twisted Metal Push Button with Roller - Unique twisted push button with roller for flexible activation
- Robust Construction - Metal design for long service life
- Versatile Detection - A combination of roller and panel for reliable activation
- MN Series Quality - Part of the proven MN series for consistent performance
Applications:
Ideal for applications requiring a limit switch with twisted pushbutton, roller, and panel, such as conveyor belts, automated production equipment, packaging lines, and other industrial systems where an enlarged detection surface and flexible activation are desired.
Technical Specifications:
- Type: Limit switch with push button, roller
- Actuator: Twisted metal push button with roller
- Series: MN-5300
Versatile position detection with a twisted push-button & roller.
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
10A 250V
Actuation Sequence(s)
Break(1) Make (2)
Contact Form(s)
Form C
Contact Resistance
25mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
true
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.01mm to 50cm/sec
Operating Temp
-10 to 80 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 60/min
Poles & Throws
SPDT Snap
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m
Panel Mount Screw Nut 2.94~4.92 N⋅m
Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
