MVS-3203
Price per piece:
€ 5,02
Prices
Total:
€ 5,02
Product description

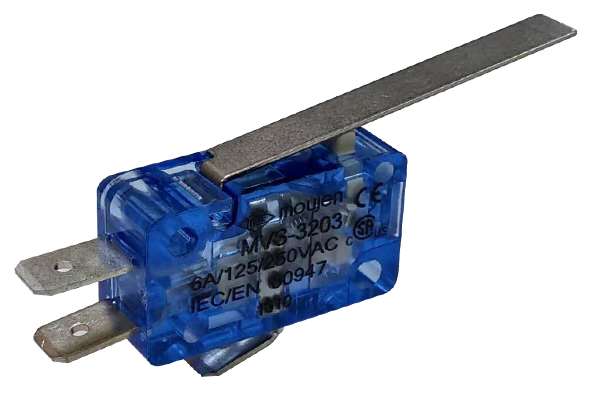

Robust Limit Switch with Extended Stainless Steel Lever
The MVS-3203 is a reliable limit switch from the MVS Series, equipped with a long SUS304 stainless steel lever for extended detection capabilities and superior corrosion resistance.
Key Features:
- Long SUS304 Lever - Extended stainless steel lever for greater detection range (49.62 mm)
- Corrosion Resistant - SUS304 stainless steel provides excellent protection against moisture and chemicals
- Extended Range - Long lever design for flexible mounting and greater detection distance
- Durable Construction - Robust stainless steel construction for long-term reliability
- MVS Series Quality - Part of the proven MVS series for consistent performance
Applications:
Ideal for applications requiring a greater detection range and corrosion resistance. Perfect for humid environments, the food industry, chemical processes, conveyor belts over longer distances and automated systems where flexible mounting is desired.
Technical Specifications:
- Type: Long lever limit switch
- Lever material: SUS304 stainless steel
- Lever length: Long (49.62 mm)
- Terminal: M3 screw
- Series: MVS-3200
Extensive position detection with corrosion-resistant reliability.
Specifications
Type
Description
Type
Description
IP-
40
AC Rated
6A 125V-250V
Actuation Sequence(s)
Break(1) Make(2)
Contact Form(s)
Form C
Contact Resistance
30mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
false
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
false
Operating Speed
0.01mm to 1m/sec
Operating Temp
-40 to 85 degrees Celcius
Operation Frequency
Mechanically: 60/min
Electrically: 30/min
Poles & Throws
SPDT Snap
Positive Opening
true
Recommended tightening forces
Mounting M3 0.39~0.59 N⋅m
Screw terminals M3 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Quick Connect (#250)
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
false
