MVS-3204
Price per piece:
€ 4,30

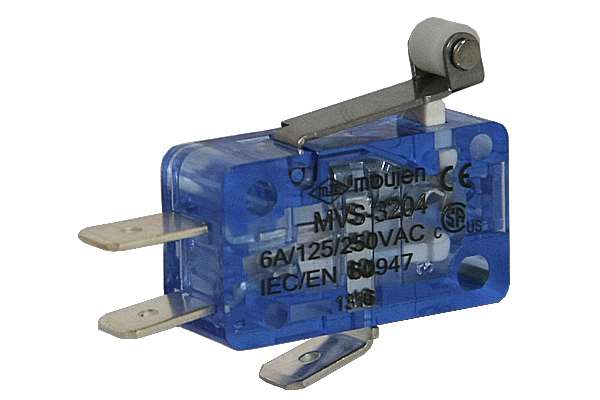

The MVS-3204 is a limit switch from the MVS Series. The MVS-3204 has a POM roller with a metal lever.
Prices
Total:
€ 4,30
Specifications
Type
Description
Type
Description
IP-
40
AC Rated
6A 125V-250V
Actuation Sequence(s)
Break(1) Make(2)
Contact Form(s)
Form C
Contact Resistance
30mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
false
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
false
Operating Speed
0.01mm to 1m/sec
Operating Temp
-40 to 85 degrees Celcius
Operation Frequency
Mechanically: 60/min
Electrically: 30/min
Poles & Throws
SPDT Snap
Positive Opening
true
Recommended tightening forces
Mounting M3 0.39~0.59 N⋅m
Screw terminals M3 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Quick Connect (#250)
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
false
