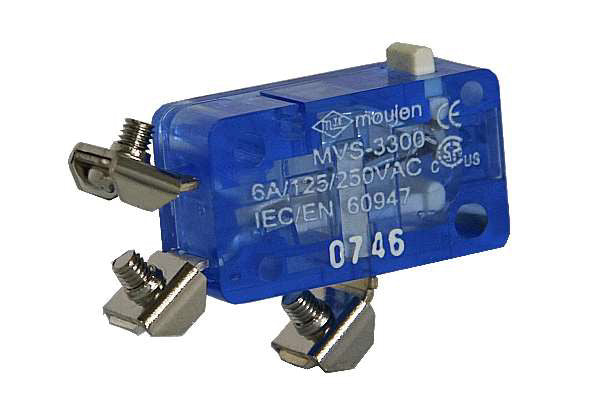

MVS-3301
Price per piece:
€ 7,12
Prices
Total:
€ 7,12
Product description
Versatile Limit Switch with Simulated Roller Lever
The MVS-3301 is an innovative limit switch from the MVS Series, equipped with a SUS304 stainless steel simulated roller lever that combines the advantages of a roller with the robustness of a fixed lever.
Key Features:
- Simulated Roller Lever - Unique SUS304 stainless steel lever that simulates roller behaviour for smooth activation (23.76 mm)
- Corrosion Resistant - SUS304 stainless steel for excellent protection against moisture and chemicals
- M3 Screw Terminal - Reliable and simple electrical connection via M3 screw terminals
- Durable Construction - No moving roller parts means less wear and maintenance
- MVS-Series Quality - Part of the proven MVS series for consistent reliability
Applications:
Ideal for applications where the advantages of a roller are desired but moving parts must be avoided. Perfect for humid environments, the food industry, pharmaceutical production, conveyor belts and automated systems where hygiene and low-maintenance operation are important.
Technical Specifications:
- Type: Limit switch with simulated roller lever
- Lever material: SUS304 stainless steel
- Lever type: Simulated roller (23.76 mm)
- Terminal: M3 screw
- Series: MVS-3300
Innovative position detection with low-maintenance reliability.
Specifications
Type
Description
Type
Description
IP-
40
AC Rated
6A 125V-250V
Actuation Sequence(s)
Break(1) Make(2)
Contact Form(s)
Form C
Contact Resistance
30mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
false
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
false
Operating Speed
0.01mm to 1m/sec
Operating Temp
-40 to 85 degrees Celcius
Operation Frequency
Mechanically: 60/min
Electrically: 30/min
Poles & Throws
SPDT Snap
Positive Opening
true
Recommended tightening forces
Mounting M3 0.39~0.59 N⋅m
Screw terminals M3 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
M3 Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
false
